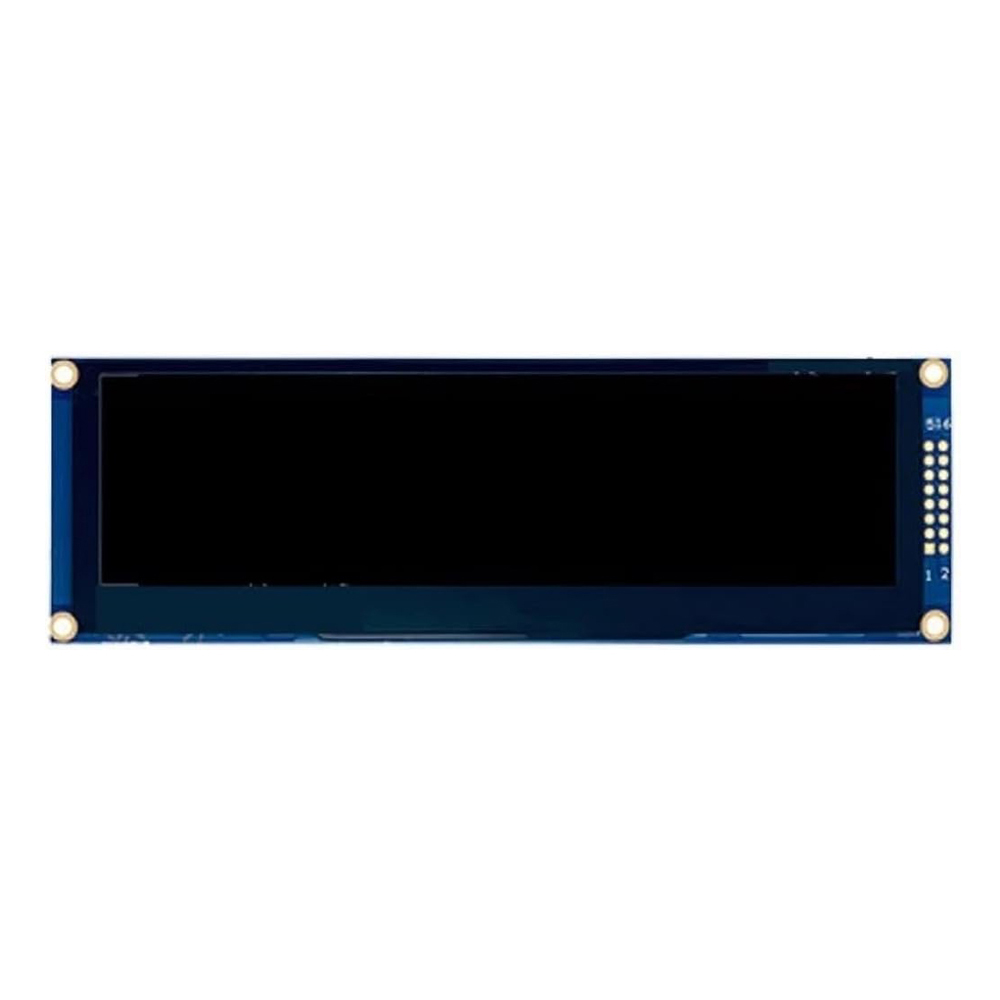

OLED Module 5.5 inch Monochrome OLED LCD Dispaly Module 25664 256x64 Pixel Driver SSD1322 SPI 6800/8080 Parallel Display Screen Module for Arduino Raspberry PISTM32
Product details
| Management number | 238124077 | Release Date | 2026/07/11 | List Price | US$39.60 | Model Number | 238124077 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Description of 5.5 inch OLED Module 256x64:The monochrome 5.5" OLED Module is the graphic COB OLED display and made of 256x64 OLED pixels,it builts in SSD1322 controller ic,communicates via 6800 / 8080 parallel / SPI serial interface. this OLED Module is Small,lightweight, low power consumption since it only powers the pixels that is necessary,suitable for industrial equipments,any embedded systems,medical and hand-held devices,securities.. Product Parameters of 5.5 inch OLED Module 256x64 Display Size:5.5" Resolution Ratio :256x64 Display Mode: Passive Matrix OLED Viewing Angles:IPS<br> Controller IC :SSD1322<br> Interface :8-BIT 68XX/80XX Parallel,4-wire SPI,3-wire SPI<br> Pin No:16P Pixel Size:0.28×0.28 mm Pixel Pitch: 0.3×0.3 mm Power Supply :2.8-3.3 V Display Color : Monochrome (Blue/Yellow) Module Dimension :159.33L×49.8W×6.3H mm Viewing Area :137.65×35.89 mm Operation Temperature : -40℃~85℃ Storage Temperature : -45℃~90℃ Package including:5.5 Inch 256x64 dots Monochrome OLED Display Module X1
- ◆5.5 inch OLED Module 256x64 Parameter:
- Display Type:OLED Display
- Display Size:5.5
- Display Color:Monochrome Green
- Resolution: 256x64
- Pin No:16 Pins

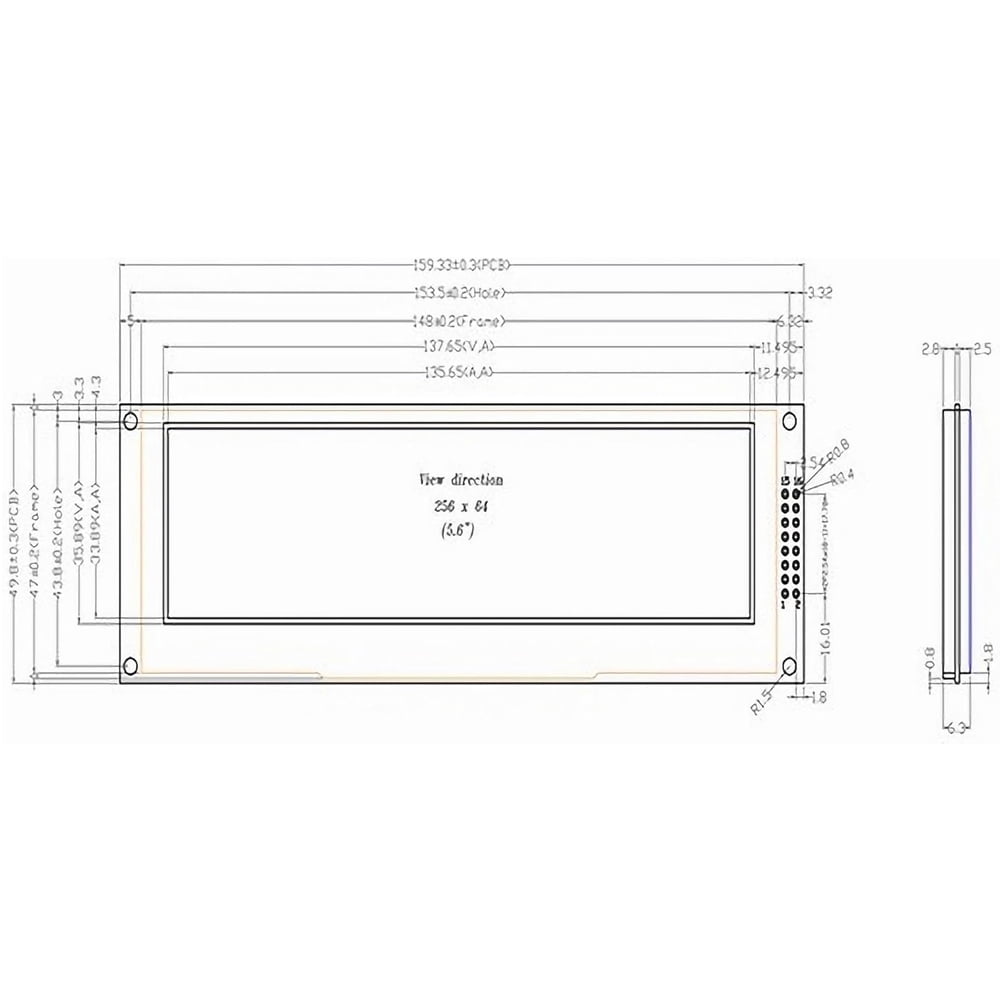

- Module Dimension:159.33L×49.8W×6.3H (mm)
- Viewing Area :137.65×35.89 mm
- Operatingn Temperature : -40℃~85℃
- Storage Temperature : -45℃~90℃
- ◆Packing details:
- 5.5 Inch 256x64 dots Monochrome OLED Display Module X1
- ◆Applications:
- Industrial equipments
- Smart watch/ MP3
- Smart Car camera monitor realtime display
- Battery capacity management.
- Function Cellphone
- Any project possibleenter image description
- Security
- Medical devices
- Hand-held device
| Brand | no |
|---|---|
| Dimensions | 5.00 x 15.00 x 10.00 mm |
| Color | RGB |
| Accessories | 5.5 Inch 256x64 dots Monochrome OLED Display Module X1 |
| Model | JKECX335S |
| Has written warranty | No |
| Weight | 0.5 kg |
| Pieces | 1 |
