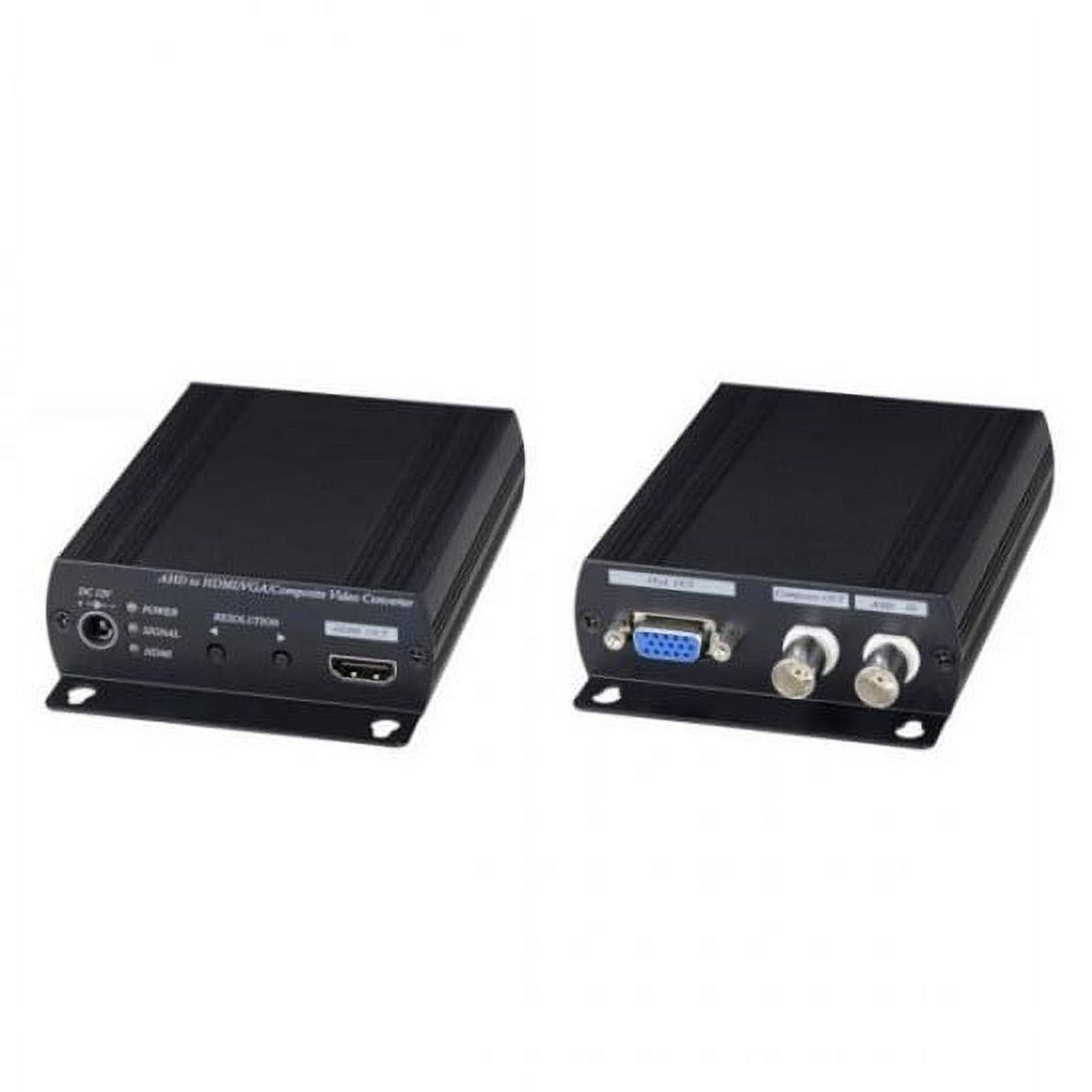

CCTV AHD Video Converter to HDMI, VGA, BNC Three in One

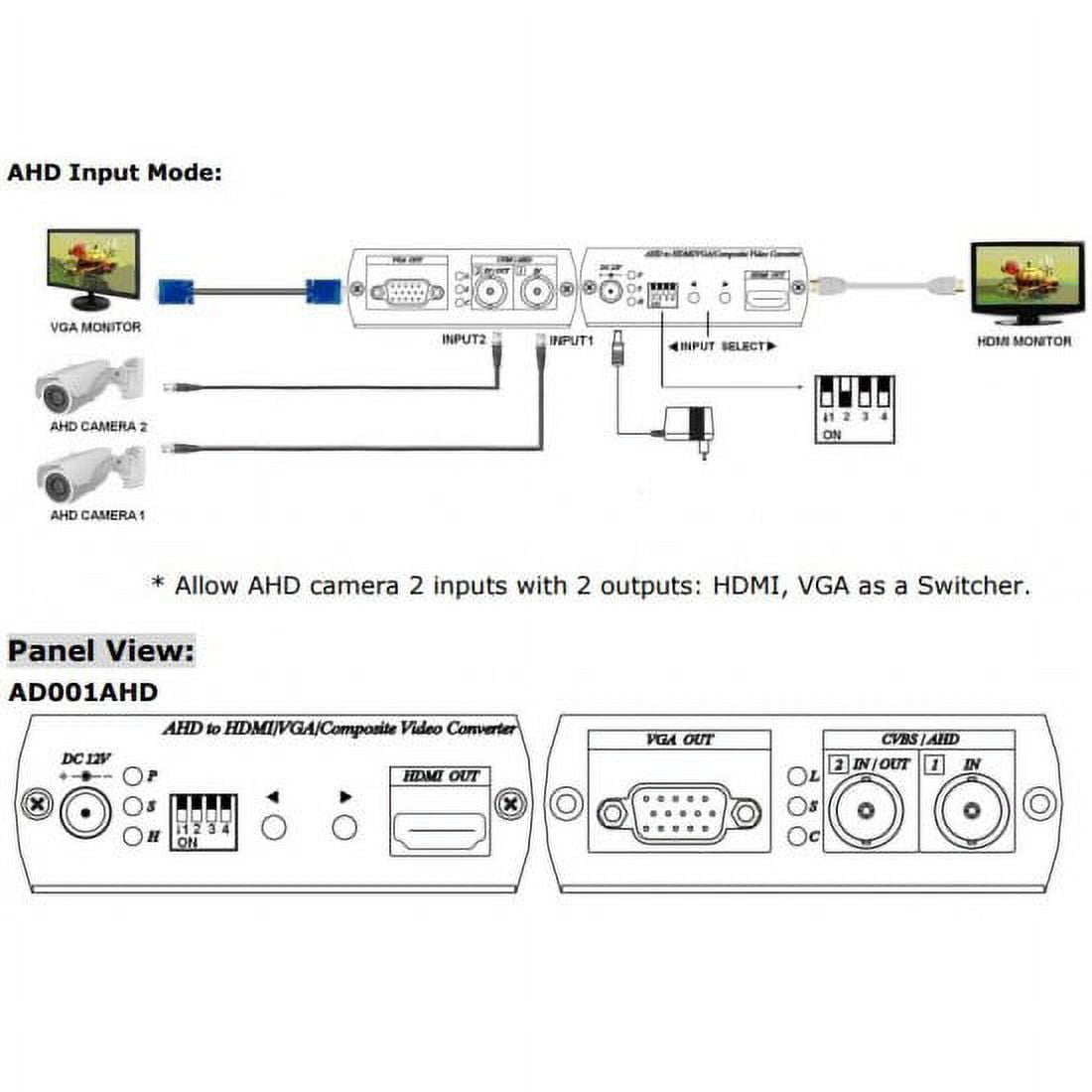

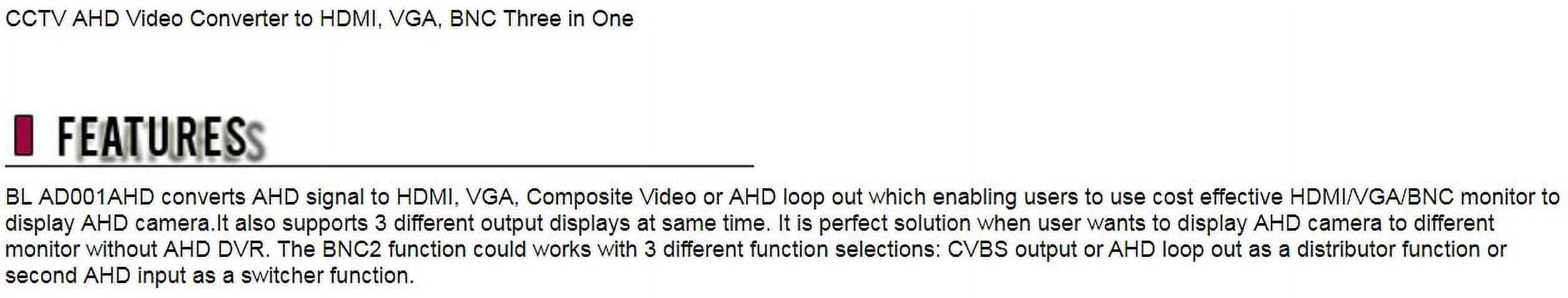

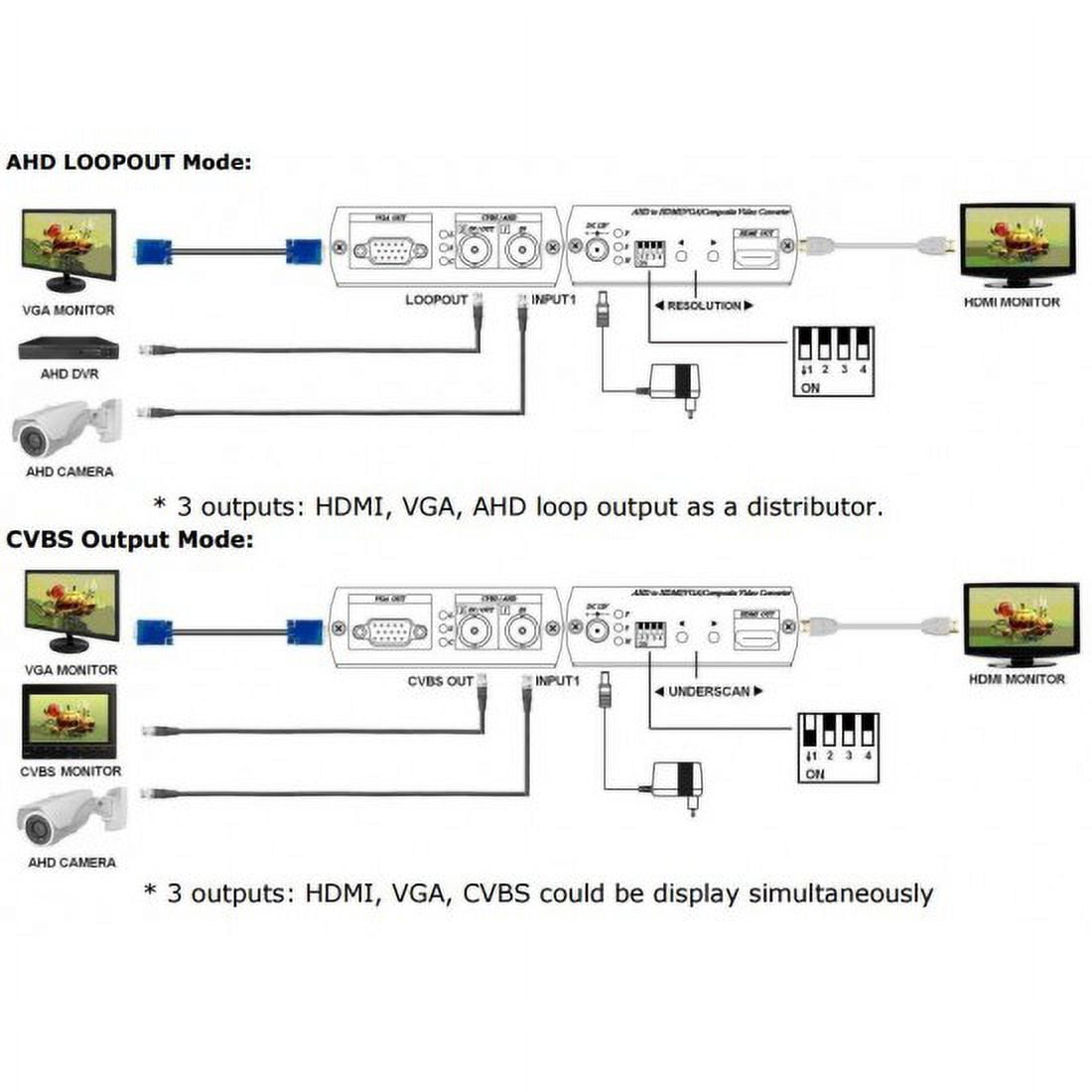

CCTV AHD Video Converter to HDMI, VGA, BNC Three in OneParts # BL SDI01BL AD001AHD converts AHD signal to HDMI, VGA, Composite Video or AHD loop out which enabling users to use cost effective HDMI/VGA/BNC monitor to display AHD camera.It also supports 3 different output displays at same time. It is perfect solution when user wants to display AHD camera to different monitor without AHD DVR. The BNC2 function could works with 3 different function selections: CVBS output or AHD loop out as a distributor function or second AHD input as a switcher function.

CCTV AHD Video Converter to HDMI, VGA, BNC Three in OneParts # BL SDI01BL AD001AHD converts AHD signal to HDMI, VGA, Composite Video or AHD loop out which enabling users to use cost effective HDMI/VGA/BNC monitor to display AHD camera.It also supports 3 different output displays at same time. It is perfect solution when user wants to display AHD camera to different monitor without AHD DVR. The BNC2 function could works with 3 different function selections: CVBS output or AHD loop out as a distributor function or second AHD input as a switcher function.Converts AHD signal to HDMI, VGA, Composite Video or AHD loop out.Input Support: AHD 1.0 720p@25/30 and AHD 2.0 720@50/60hz,1080p@25/30Hz, Composite Video (NTSC, PAL).Output Support: HDMI, VGA, Composite Video or AHD loop out.3 outputs could be display simultaneously.BNC connector function selection: AHD loop output, Composite video output or assecond AHD input.HDMI/VGA output support: 480p,576p,720p,1080i,1080pComposite video output support NTSC, PAL.Composite output built in underscan adjustment. (allow the edges of the picture fit well)Built in OSD to display input/output setting.HDMI and DVI compliant. (Support DVI monitor by a HDMI to DVI adaptor)

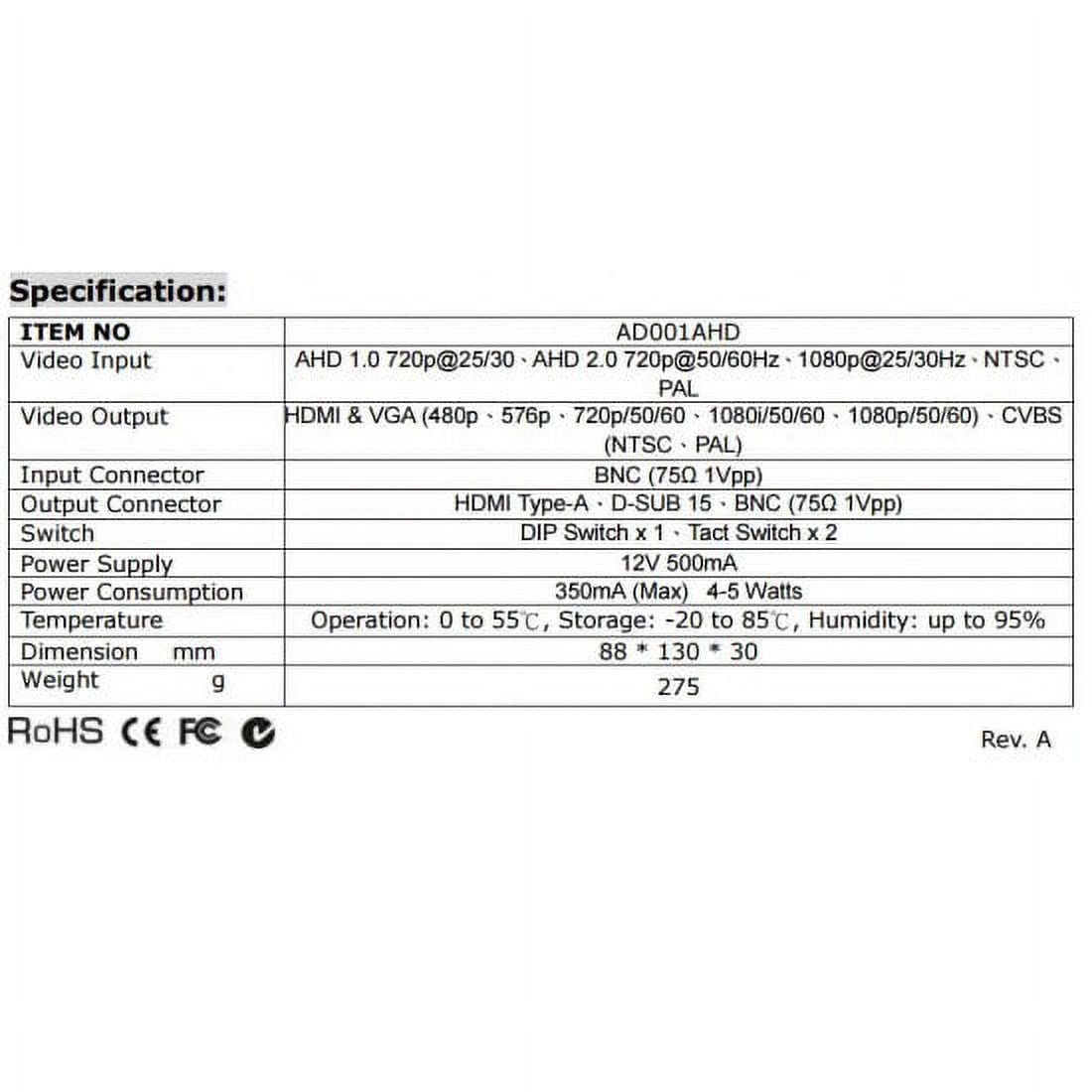

Inputs/Outputs	Input Support: AHD 1.0 720p@25/30 and AHD 2.0 720@50/60hz, 1080p@25/30Hz, Composite Video (NTSC, PAL).Output Support: HDMI, VGA, Composite Video or AHD loop out.3 outputs could be display simultaneously.
In/Out type	HDMI
Input/output direction	Output, Input
Brand	BlueCCTV
Input/output quantity	3
Has written warranty	No
